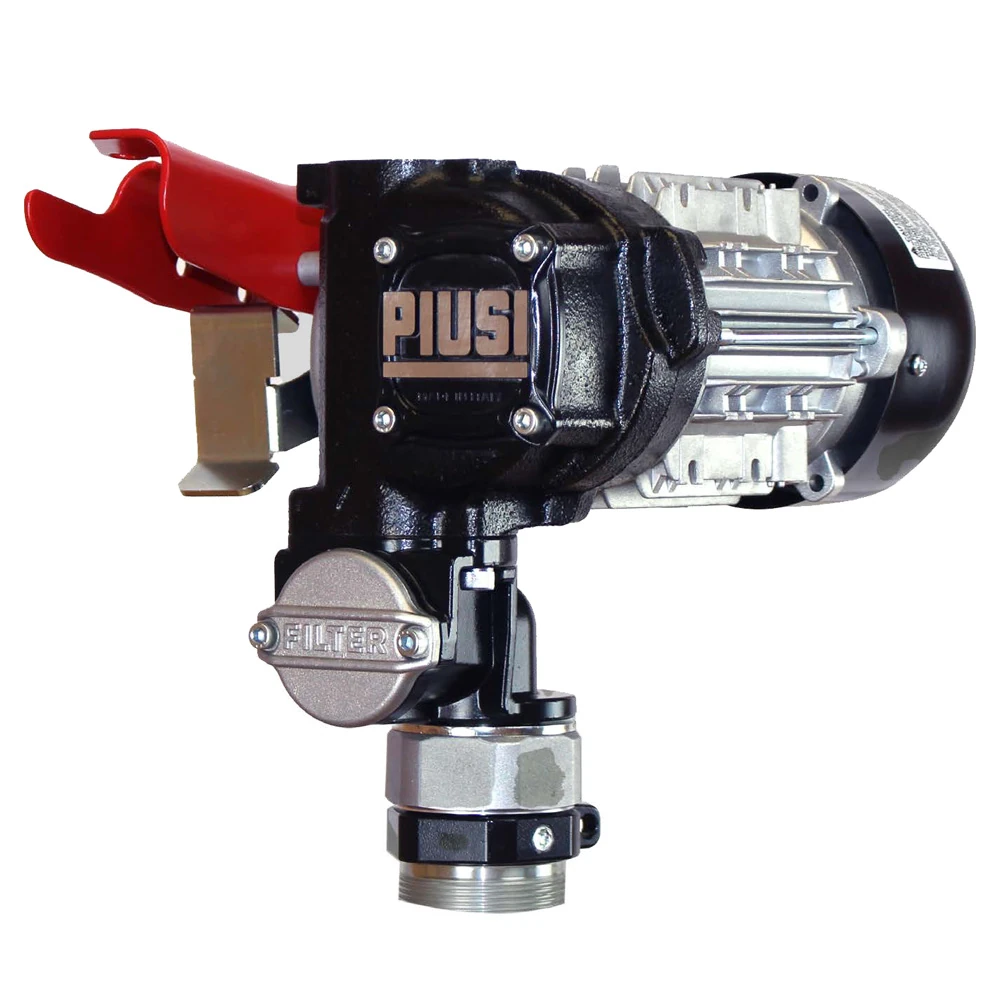

EX50 ATEX Refuelling Pump Kit
Piusi EX50 is a complete drum pump fuel transfer kit expressly engineered for ATEX/IECEx areas for dispensing Diesel, Petrol, AVGAS & JET-A1
- Designed to be used in automotive, agriculture, and construction applications
- Includes UL/CSA-listed auto nozzle and motor
- 230V AC motor delivering up to 50 Litres per minute
- B-Tech bypass valve ensures consistent flow rate
- Vane and rotor design allow for greater fuel displacement per revolution
- Drum connector has a built-in strainer which is easy to remove for cleaning
- Spring-loaded vanes provide higher suction capabilities and flow rate
- Continous cycle
The transfer unit complies with the European ATEX directives to ensure maximum safety in its use with flammable liquids.
Piusi EX50 connects easily to drums with the 2″ connector. The cast iron body makes the overall construction sturdy and compact and the installed motor is able to dispense up to 50 l/min with reduced absorption to guarantee a durable product.

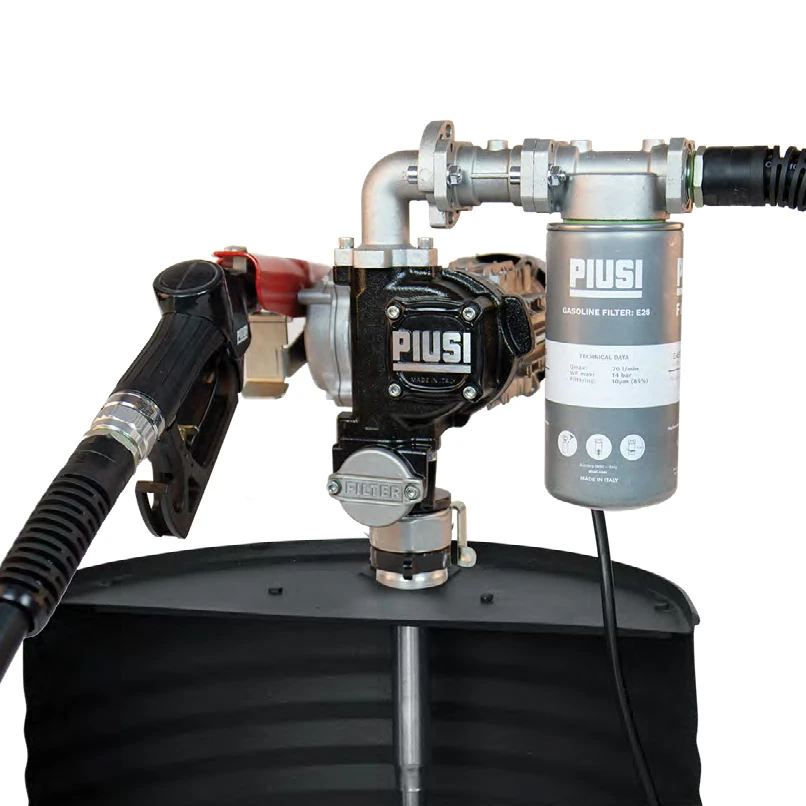

The transfer unit is a complete solution that includes: a telescopic suction hose for direct connection to the drum and housing for the nozzle located near the pump, which is located above the drum for a clean and efficient use of the fuel dispenser.
The anti-noise filter (EMC electromagnetic compatibility) and the thermal protection make Piusi EX50 a safe and reliable fuel dispenser. The connections are quick and safe because the pump, flow meter and filters which can be mounted or replaced are flanged and do not require sealant.
Piusi Drum EX50 features a built-in bypass valve, a non-return valve and an overpressure relief valve.
The entire suction unit is integrated with an additional filter.
Specifications (F0037401A)
| Output/Transfer Rate: | 50L/min |
| Power voltage: | 230V AC Power |
| Directive: | ATEX |
| Duty cycle: | 30 min |
| Power output: | 250 watt |
| Country of manufacture: | Italy |
